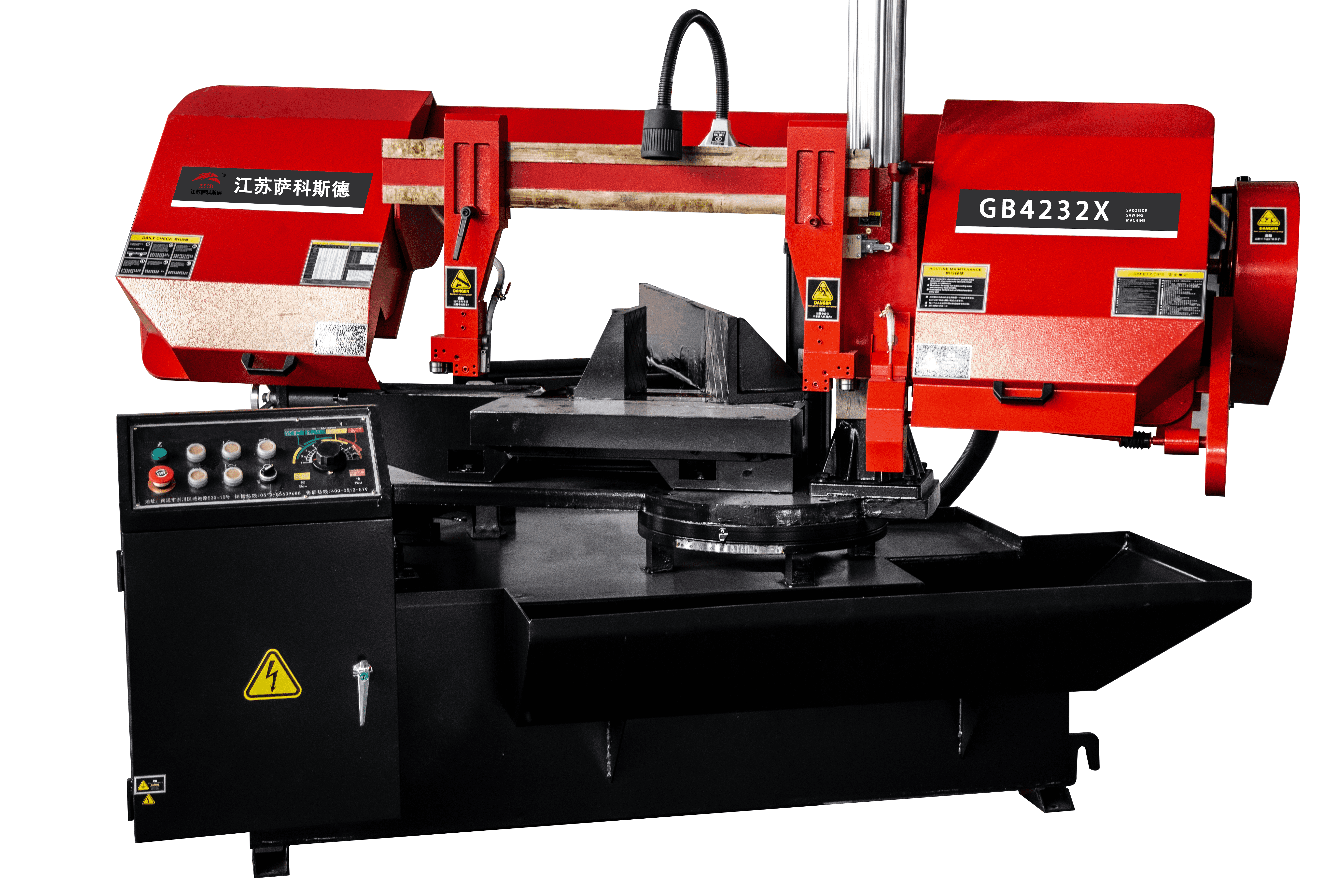

JSSCD-GB4232X Band Saw machine
Description
Jiangsu Sakoside Intelligent Machinery Technology Co., Ltd. operates as an integrated industrial equipment provider, combining research and development, manufacturing, and comprehensive sales and support services. The company specializes in the design and production of industrial band sawing equipment.
Sakoside's band saw machines are engineered to process diverse shapes from materials including metal, plastic, and alloy stock. This capability has led to their widespread implementation across material processing and machinery manufacturing sectors.
The GB series of column band saws represents Sakoside's premier technological offering. Developed in-house, this high-performance range incorporates advanced features aligned with global engineering standards, specifically optimized for cutting hardened alloys. Key advantages include:
Elevated Productivity: Delivers significantly accelerated cutting rates while substantially reducing energy consumption.
Robust Construction: Features a reinforced transmission system and a high-capacity main drive motor, resulting in exceptional linear cutting power and speed.
Superior Cut Results: Generates high-precision surfaces with excellent finish quality, especially when paired with specialized cutting fluids and application-specific saw blades.
Extended Service Life & Stability: Ensures consistent operational performance. Machine columns benefit from industrial hard-chrome plating, providing exceptional resistance to wear, enhanced dimensional integrity, and prolonged operational lifespan.
Advanced Control & Guidance: Employs a hydraulic lifting mechanism. Consistent cutting accuracy is secured through bearing-supported blade guides featuring adjustable tungsten steel guide plates.
Specification
| Model | Unit | JSSCD-GB4232X |
| Machine size | mm | 1500*2300*1500 |
| Square bar&angle bar | mm | 45°320*320 |
| Bar&round pipe | mm | 45°320*320 |
| Saw band speed | m/min | 31,47,60,85 |
| Saw band size | 4550*34*1.1 | |
| Main motor power | kw | 4 |
| Hydraulic motor power | kw | 0.75 |
| Cooling motor power | kw | 0.4 |
| Hydraulic fluid capacity | L | 80 |
| Cutting fluid capacity | L | 50 |
| Saw band tension | Manual | |
| Clamping method | Manual | |
| Feeding method | Manual | |
| Feeding stroke | mm | / |
FAQ
Q1: Are you a manufacturer or a trading company?
A:We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2. Where is your factory located?
A:Our factory is located in Nantong City, Jiangsu Province, China.
It will takes about 1.5 hours from Shanghai Hongqiao station to our city
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q4:What is your method of transaction?
A:We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.
The specific delivery time depends on the items and the quantity of your order.
Q6:How about the payment term
A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7:Does the band saw blade have any international certifications?
A:Yes,we have obtained CE,ISO international certification.
|
|
