OPEN THE FUTURE WITH INTELLIGENCE AND BUILD EXCELLENT WORKMANSHIP
1 Years
| Ask Lasest Price | |
| Brand Name : | JSSCD |
| Model Number : | JSSCD-300NC/P |
| Delivery Time : | 7-60 work days |
| Certification : | HB24Q00435R0S HB24E0025 HB24S00242R0S8R0S |
| Payment Terms : | FOB |
| Supply Ability : | 500 Sets Per Year |

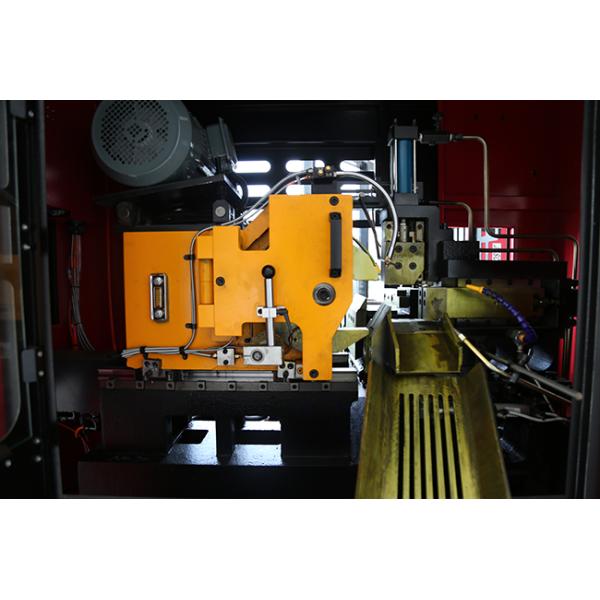

This CNC high-speed circular saw machine is specifically designed to meet the demands for efficient and precise cutting of metal profiles, excelling particularly in horizontal cutting operations. Integrating high-speed cutting, automatic control, precision operation, and environmental performance, it has become an indispensable key piece of equipment in modern metal processing production lines due to its outstanding performance and reliability.
This machine is suitable for the precision cutting of various metal profiles, including round pipes, angle steels, and square tubes. The optimized clamping system design (hydraulic horizontal/vertical clamps) significantly reduces the need for frequent fixture changes, greatly enhancing the equipment's adaptability and processing flexibility for materials of different sizes and shapes.
The intelligent control module allows for precise adjustment of cutting speed, angle, and other key process parameters, ensuring efficient and accurate cutting results. The high-precision CNC control system, paired with an intuitive human-machine interface (HMI), ensures simple operation and supports fully automated production processes.
| Model | Unit | JSSCD-300NC/P |
|---|---|---|
| Mainframe dimensions | mm | 3000*3000*2500 |
| Bar & round pipe | mm | 130-300 |
| Angle bar & square bar | mm | 130-250 |
| Saw blade size | mm | φ840*4.0*φ80 |
| Pin holes and hole diameters | mm | 4*φ21*180 φ80 |
| Spindle motor power | KW | 45(6P) |
| Spindle speed | rpm | 20-08 |
| Feed servo motor power | KW | 7.5 |
| Feeding servo motor power | KW | 5.5 |
| Material removal length at the front end | mm | 20-99 |
| Single feeding length(repeatable) | mm | 10-800 |

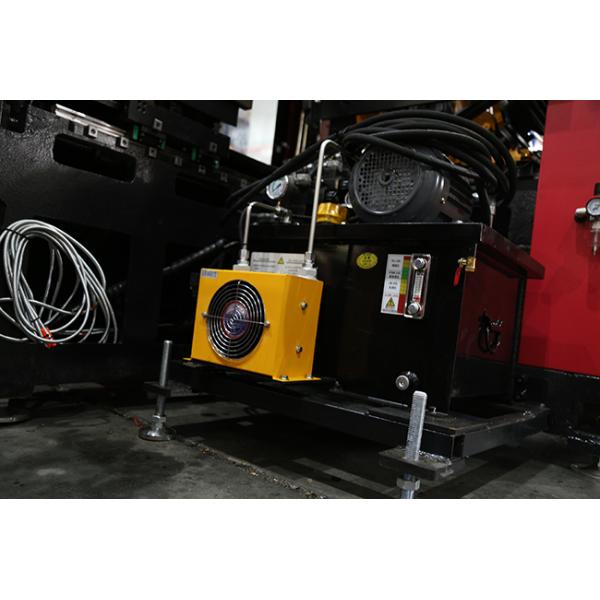

| Hydraulic drive motor power | KW | 7.5 |
| Rated pressure of the hydraulic system | mpa | 7.5 |
| Hydraulic oil capacity | L | 150 |
Q1: Are you a manufacturer or a trading company?
A:We are a professional manufacturer of saw blade grinders. We have a 30,000 square meter factory and a team of dedicated technicians specializing in design, manufacturing, and sales.
Q2. Where is your factory located?
A:Our factory is located in Nantong City, Jiangsu Province, China.
It will takes about 1.5 hours from Shanghai Hongqiao station to our city
Q3: What is your factory acceptance test method?
A: You can send us sample material to be cut, and we will perform a test cut using our machine. After the test is complete, we will provide you with detailed cutting data. (We will also send you a video of the machine cutting operation for your confirmation.)
Q4:What is your method of transaction?
A:We adopt the FOB(Free ON Board) transaction.
Q5: How about your delivery time?
A: Generally, it will take 7-60 work days after receiving your order.
The specific delivery time depends on the items and the quantity of your order.
Q6:How about the payment term
A:T/T 30% deposit, 70% of balance paid before shipment. (For other payment methods please contact our sales team)
Q7:Does the band saw blade have any international certifications?
A:Yes,we have obtained CE,ISO international certification.
|
|
